CnThis product is suitable for the treatment of varicose veins in the main trunk of the great saphenous vein of the lower limb when used in conjunction with the Radiofrequency Ablation Generator (Model: RFI-1000) produced by Zylox Medtech Co., Ltd.
This product is suitable for the treatment of varicose veins in the main trunk of the great saphenous vein of the lower limb when used in conjunction with the Radiofrequency Ablation Generator (Model: RFI-1000) produced by Zylox Medtech Co., Ltd.
Rapid controlled heating to 120℃ - Within just 5 seconds*
Segmented 20-second heating - Ensures safe and effective vessel sealing*
Swaneck external marker - Enables precise targeting and efficient treatment
One-touch power control - With easy system control
6F outer diameter, compatible with 6F vascular sheaths for minimized puncture sites
2 mm nylon construction with flexible, kink-resistant design for smooth navigation through tortuous vessels
Guidewire-free advancement with a soft flexible tip for effortless passage
Rapid post-procedure cooling enables atraumatic withdrawal
Available in working lengths of 60 cm or 100 cm

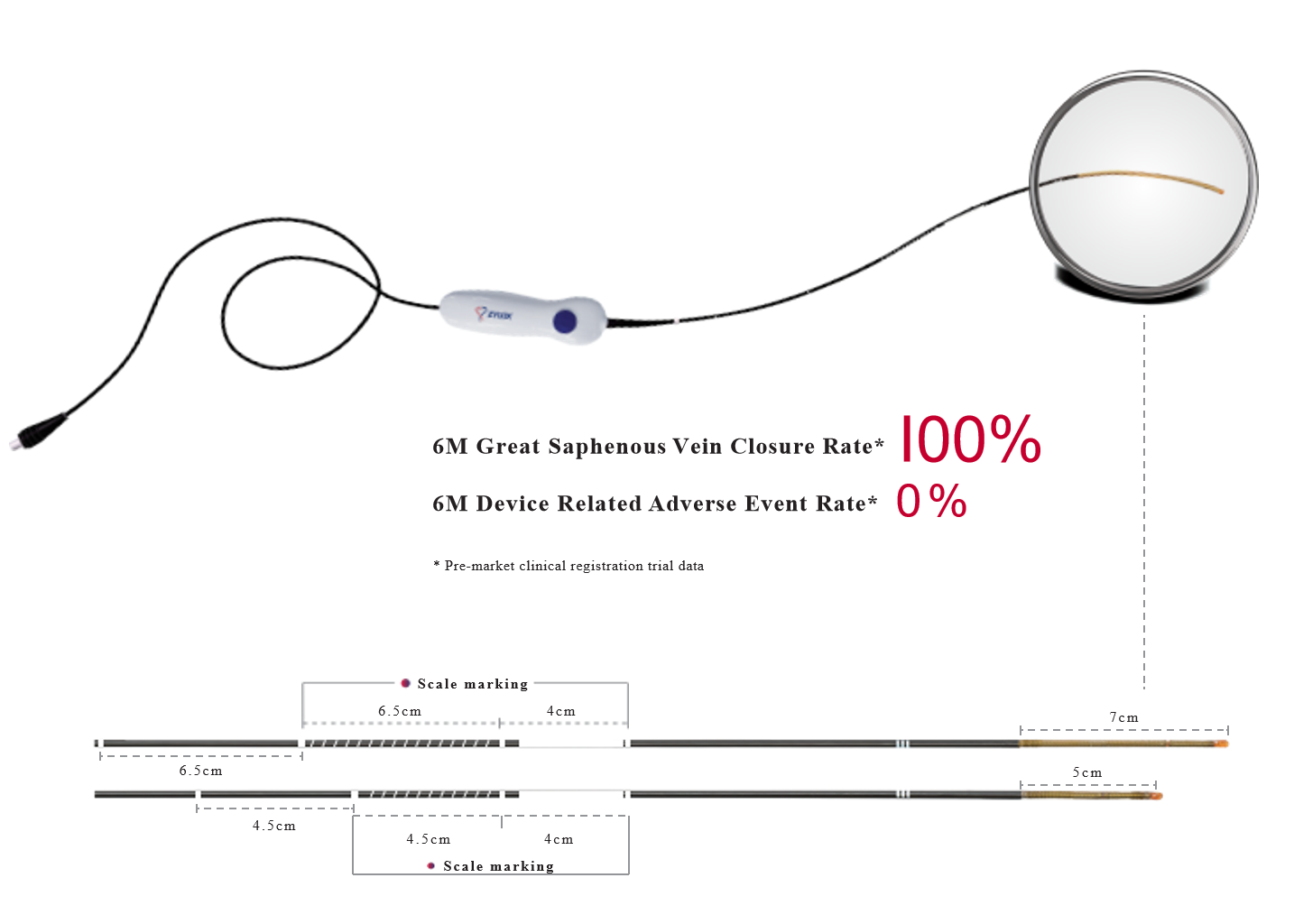

Swaneck external marker helps measurement and positioning
Heating element length available in 5 cm or 7 cm options
Highly visible under ultrasound guidance for improved catheter navigation
| Model specification | Heating element diameter | Working length | Marking interval | Heating element length | Connecting cable length |
| EC-6F-5-100 | 2.0mm | 100cm | 4.5cm | 5cm | 2.5m |
| EC-6F-5-60 | 2.0mm | 60cm | 4.5cm | 5cm | 2.5m |
| EC-6F-7-100 | 2.0mm | 100cm | 6.5cm | 7cm | 2.5m |
| EC-6F-7-60 | 2.0mm | 60cm | 6.5cm | 7cm | 2.5m |
-system.webp "Indications of ZYLOX Swan™ Radiofrequency Ablation (RFA) System")

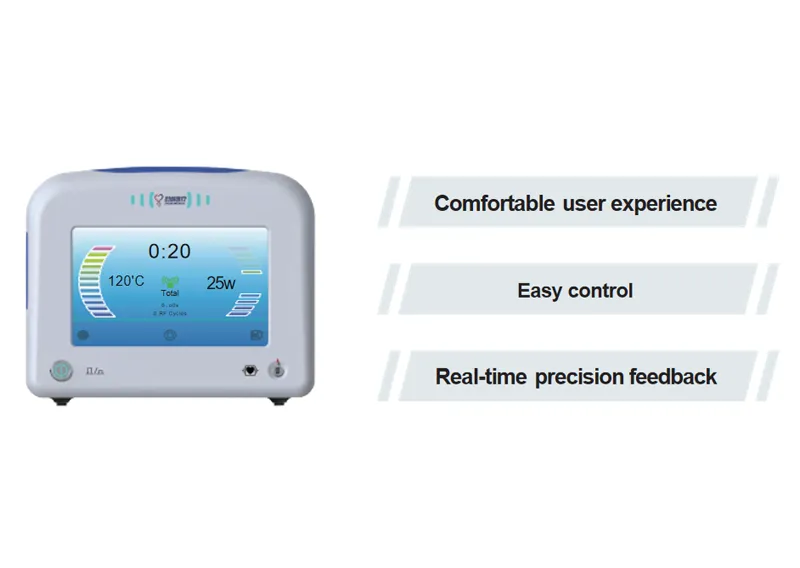

This product is used for the treatment of varicose veins in the main trunk of the great saphenous vein of the lower extremity, and it is used in conjunction with Endovenous Radiofrequency Ablation Catheter (Model: EC-6F-5-100, EC-6F-5-60, EC-6-F-F-7-100, EC-6F-7-60) manufactured by Zylox-Tonbridge Medical Technology Co., Ltd.
