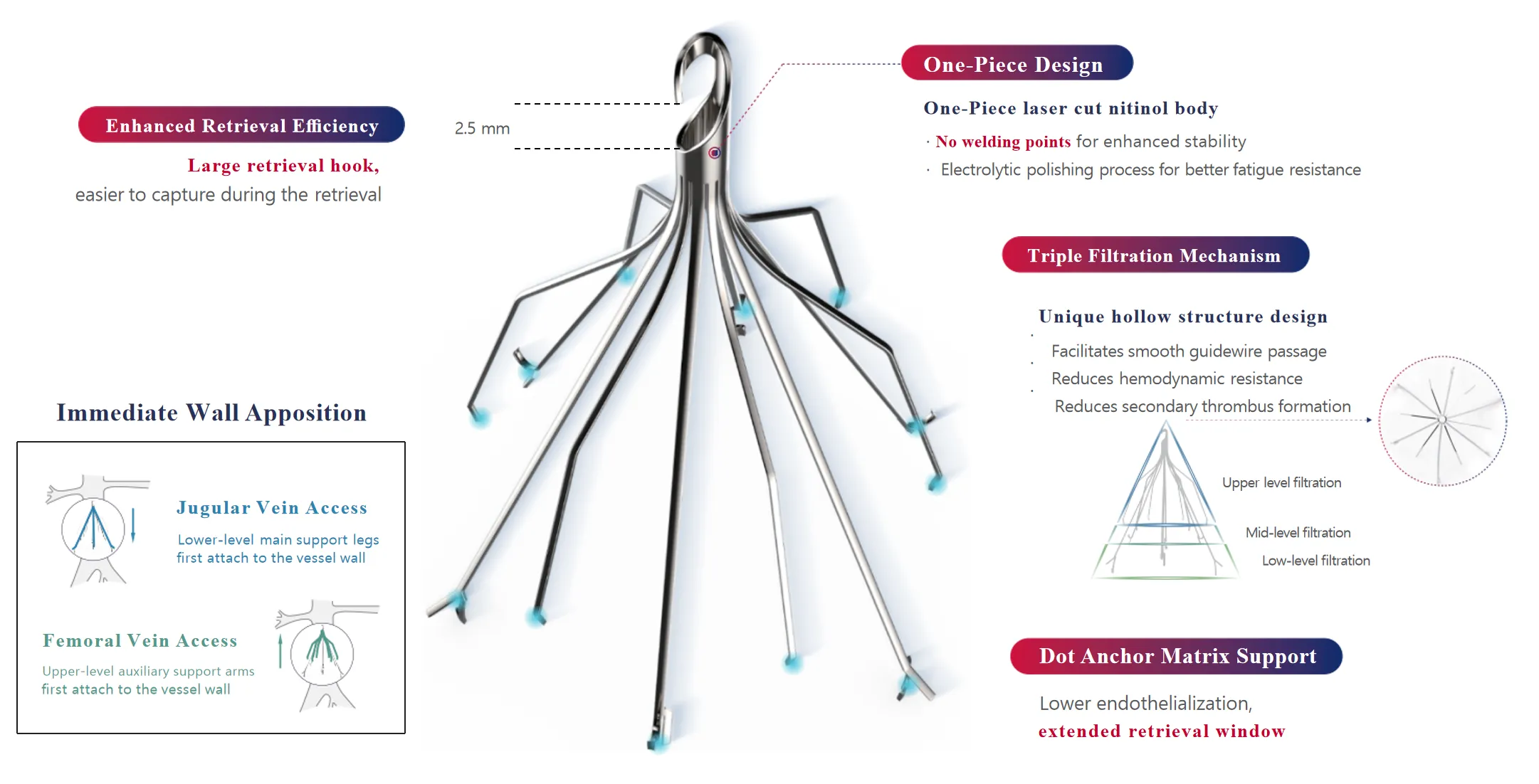

CnLower level main 3 support legs, upper & middle level 9 auxiliary support arms, forming an exceptional self-balancing structure with stability and precision.
Lower level main 3 support legs, upper & middle level 9 auxiliary support arms, forming an exceptional self-balancing structure with stability and precision.
Lower-level main support legs first attach to the vessel wall
Upper-level auxiliary support arms first attach to the vessel wall
Lower level main 3 support legs, upper & middle level 9 auxiliary support arms, forming an exceptional self-balancing structure with stability and precision.
One-Piece laser cut nitinol body
No welding points for enhanced stability
Electrolytic polishing process for better fatigue resistance
Large retrieval hook, easier to capture during the retrieval.
Unique hollow structure design
Facilitates smooth guidewire passage
Reduces hemodynamic resistance
Reduces secondary thrombus formation
Lower endothelialization, extended retrieval window.

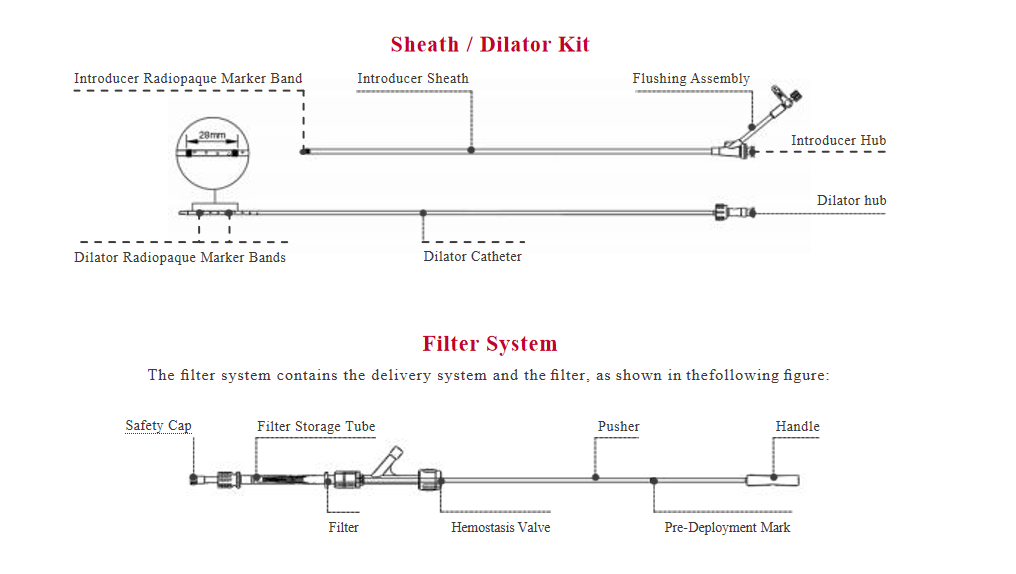

Order Number | Description | IVC Diameter | Introducer Sheath Length | I.D | Guidewire | Introducer Sheath |
CF1401J | Jugular Vein | ≤ 28 mm | 55 cm | 8.4F | 0.035” | 10 F |
CF1401F | Femoral Vein |
This product is indicated for use in the prevention of pulmonary embolism (PE) caused by dislodged emboli in the inferior vena cava (IVC) system through percutaneous placement via a trans jugular venous approach & trans femoral vein approach. Includes:
Patients with existing PE or thrombosis of the IVC, iliac, femoral or popliteal veins who meet the following conditions:
(1)presence of contraindications to anticoagulation therapy;
(2) development of complications such as bleeding during anticoagulation therapy;
(3) recurrence of PE despite adequate anticoagulation therapy, or failure to achieve adequate anticoagulation for various reasons.
PE concurrent with deep vein thrombosis (DVT) of the lower extremities.
Presence of free-floating thrombi or massive thrombus in the iliac, femoralvein or IVC.
Diagnosis of thrombophilia with recurrent PE.
Acute deep vein thrombosis of the lower extremities, who wants to perform transcatheter thrombolysis and thrombus removal.
