The ZYLOX Boa™ Snare consists of a pusher head, hemostasis valve, connector, snare catheter, and snare, and is suitable for grasping or controlling foreign objects in the cardiovascular system.
The snare diameter ranges from 5mm to 40mm, easily handling various challenges.

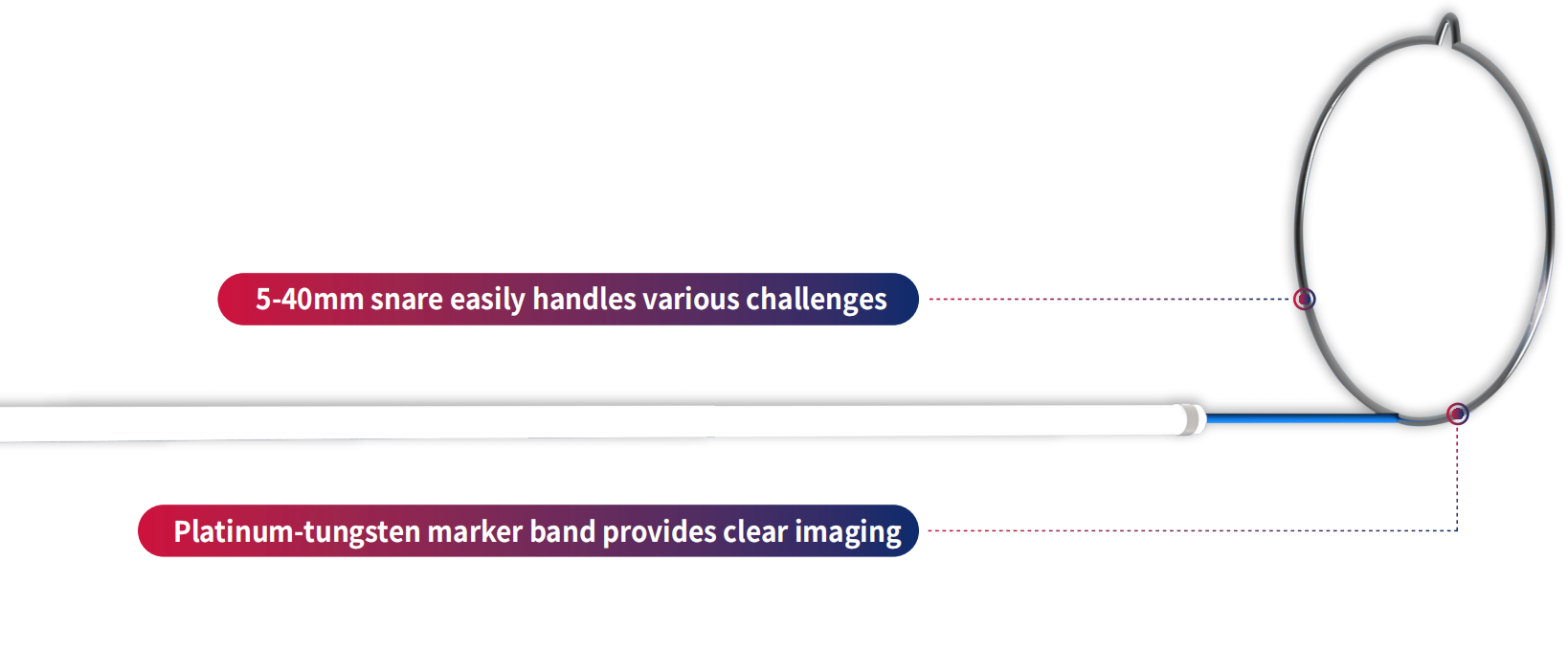

5-40mm snare easily handles various challenges
Platinum-tungsten snare loop material for enhanced imaging clarity
The snare catheter is flexible and equipped with a radiopaque marker band
Excellent torque control performance of the snare. Snare catheter and hemostasis valve for precise handling
| Specification | Snare Loop Diameter/mm | Effective Catheter Length/cm | Specification | Snare Loop Diameter/mm | Effective Catheter Length/cm |
| Snare05-4F-500 | 5.0 | 50 | Snare22-6F-1000 | 22.0 | 100 |
| Snare05-4F-700 | 5.0 | 70 | Snare25-6F-500 | 25.0 | 50 |
| Snare05-4F-1000 | 5.0 | 100 | Snare25-6F-700 | 25.0 | 70 |
| Snare10-4F-500 | 10.0 | 50 | Snare25-6F-1000 | 25.0 | 100 |
| Snare10-4F-700 | 10.0 | 70 | Snare30-6F-500 | 30.0 | 50 |
| Snare10-4F-1000 | 10.0 | 100 | Snare30-6F-700 | 30.0 | 10 |
| Snare15-6F-500 | 15.0 | 50 | Snare30-6F-1000 | 30.0 | 100 |
| Snare15-6F-700 | 15.0 | 70 | Snare35-6F-500 | 35.0 | 50 |
| Snare15-6F-1000 | 15.0 | 100 | Snare35-6F-700 | 35.0 | 70 |
| Snare20-6F-500 | 20.0 | 50 | Snare35-6F-1000 | 35.0 | 100 |
| Snare20-6F-700 | 20.0 | 70 | Snare40-6F-500 | 40.0 | 50 |
| Snare20-6F-1000 | 20.0 | 100 | Snare40-6F-700 | 40.0 | 70 |
| Snare22-6F-500 | 22.0 | 50 | Snare40-6F-1000 | 40.0 | 100 |
| Snare22-6F-700 | 22.0 | 70 |
Providing Comprehensive Solutions for Patients Worldwide
